Overview
The solid state POWERCORE Management Enclosure is the brain of the system. It receives requests from switch or keyboards and handles these commands based on the current state of the system. The output may be the activation/deactivation of a circuit, starting a timer function or, in a system with keyless start, locking or unlocking of the system.
The POWERCORE then sends status data from system to keyboards to turn on/off the LED indicators and backlighting.

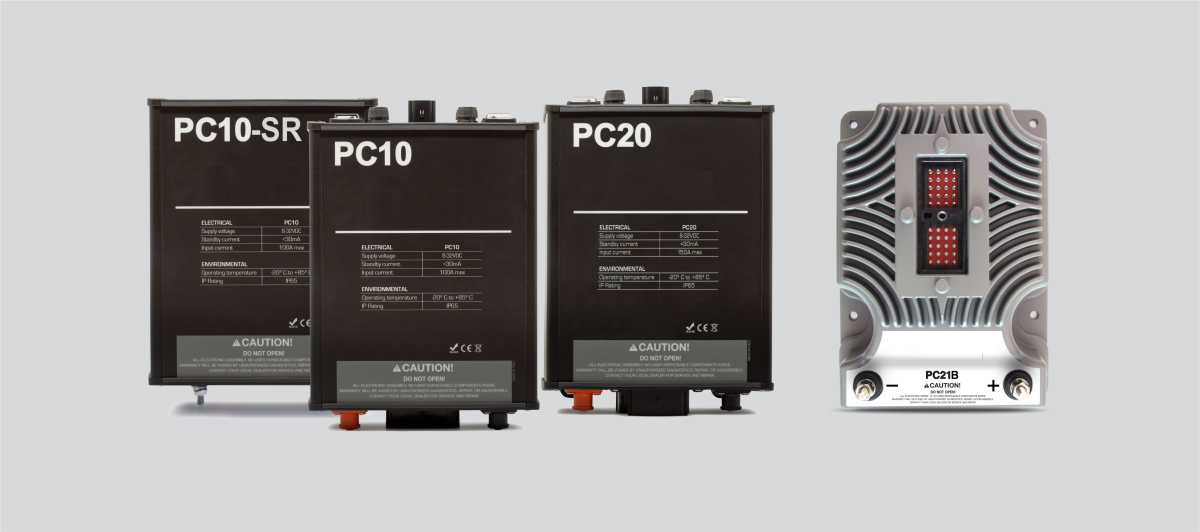

Googolplex offers four different POWERCORE Units that vary in number of outputs and electrical specifics.
PC 10 ELECETRICAL FEATURES
– 12V or 24V nominal input voltage.
– 100A total PME input current carrying capability.
– 12 switched circuits that include:
○ Momentary, toggle, and time-out functions.
○ Pulse-width modulation of output voltage for dimming capability.
○ 3 circuits rated up to 20A maximum continuous load, 9 circuits rated up to 15A.
○ 2 complete H-Bridge circuits for driving reversible motors.
– Parallelable output increases current rating.
– An electronic circuit breaker protects every circuits. The current ratio for each circuit can be set independently.
– Remote reset of any output circuitry fault through keypad.
– Input undervoltage lock down.
Download Data Sheet
PC 10-SR ELECTRICAL FEATURES
– 12V or 24V nominal input voltage.
– 100 Ampere total PME input current carrying capability.
– 10 switched circuits that include:
○ Momentary, toggle, and time-out functions.
○ Pulse-width modulation of output voltage for dimming capability.
○ 2 complete H-Bridge circuits for driving reversible motors.
– Parallelable output increases current rating.
– An electronic circuit breaker protects circuits. The current ratio for each circuit can be set independently (10 switched circuits).
– Remote reset of switched circuits fault through keypad.
– Input undervoltage lock down.
Download Data Sheet
PC 20 ELECTRICAL FEATURES
– 12V or 24V nominal input voltage.
– 150 Ampere total PME input current carrying capability.
– 22 switched circuits that include:
○ Momentary, toggle, and time-out functions.
○ Pulse-width modulation of output voltage for dimming
capability.
○ 5 circuits rated up to 20A maximum continuous load, 17
circuits rated up to 15A.
○ 4 complete H-Bridge circuits for driving reversible motors.
– Parallelable output increases current rating.
– An electronic circuit breaker protects every circuits. The current
ratio for each circuit can be set independently.
– Remote reset of any output circuitry fault through keypad.
– Input undervoltage lock down.
Download Data Sheet
PC 21B ELECTRICAL FEATURES
– 12V or 24V nominal input voltage.
– 150 Ampere total PME input current carrying capability.
– 22 switched circuits that include:
○ Momentary, toggle and time-out functions.
○ Pulse-width modulation of output voltage for dimming capability on 3 circuits.
○ 22 circuits, each rated up to 15A.
○ 2 complete H-Bridge circuits for driving reversible motors.
– Parallel output capability to increase current rating.
– An electronic circuit breaker protects every circuit. The current ratio for each circuit can be set independently.
– Remote reset of any output circuitry fault through keypad.
– Input undervoltage lock down.
Download Data Sheet
The Keybox is an I/O, CANbus relay module specifically designed for 12V or 24V electrical loads. Compact and efficient, the Keybox Inputs and Outputs can be connected to various powered components and fixtures on your installation i.e. lights, electric motors, bilge pumps, mechanical arms etc. MORE
